Concepts Overview

This chapter explains the core concepts of the Matter protocol. No specific technical background is required -- anyone can follow along. After reading, when you see data like "Endpoint 1 / Cluster 0x0101 / Attribute 0x0 = 0x01", you will know exactly what it means.

What is Matter

Matter is a unified smart home standard protocol, jointly developed by Apple, Google, Amazon, Samsung, and others (the organization is called CSA -- Connectivity Standards Alliance).

Before Matter, if a smart light bulb wanted to be controlled by HomeKit, Google Home, and Alexa simultaneously, the manufacturer had to integrate three completely different protocols. Matter's goal is simple: define one standard data model and communication method that all platforms accept.

Think of it this way: Matter is like USB-C. Every phone used to have its own charging port; now they are all USB-C, and cables and devices are interchangeable. Matter does the same thing -- it defines a "universal interface" for smart home devices.

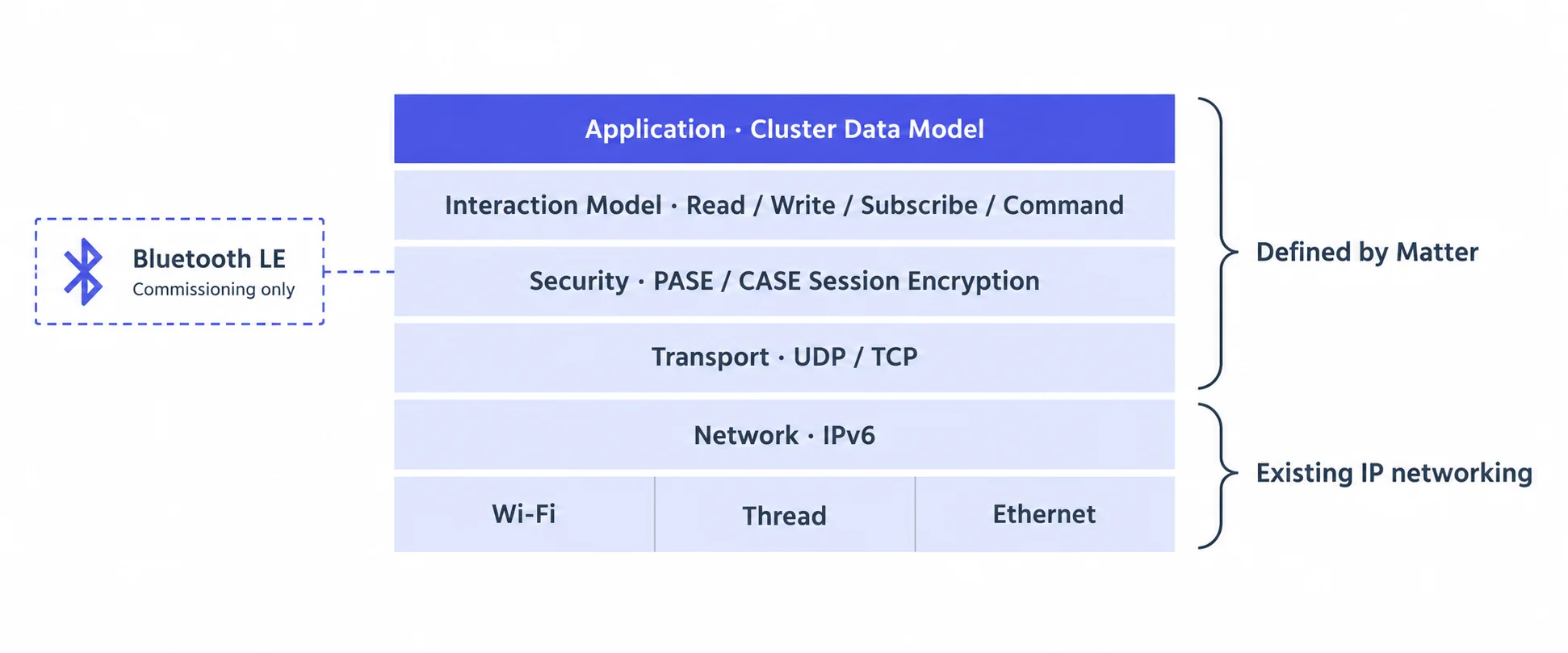

Technically, Matter is an application-layer protocol: it only defines the upper layers (what a device can do, how to interact with it, how traffic is encrypted) and runs on top of the IP networks you already have -- Wi-Fi, Thread, Ethernet. Bluetooth LE is used only briefly during commissioning.

To see which layers Matter, Zigbee, Z-Wave and Bluetooth Mesh each cover and how they compare, see the Protocol Comparison. Whether a device should use Thread or Wi-Fi, and whether your home needs a hub, are covered in Thread vs Wi-Fi and Hubs, Border Routers and Bridges.

Matter's Four-Layer Data Model

Matter organizes all of a device's capabilities into four layers. This is the most fundamental concept in Matter -- understand it and you understand most of the protocol.

Imagine a smart building -- this analogy will help you see the whole structure at a glance:

Let's go through each layer in detail.

Node

A Node is a physical device on the network. A door lock is a Node, a light bulb is also a Node.

Analogy: a smart building. The building itself is a Node -- it has different rooms inside, and each room is equipped with different systems.

Endpoint

A Node can have multiple Endpoints, and each Endpoint is an independent functional area.

Analogy: different rooms in a building. The management office handles building-level affairs (utilities, maintenance), while tenant rooms are where actual living happens. Endpoints work the same way -- different endpoints serve different purposes.

Matter defines two types of Endpoints:

Cluster

Cluster is the most important concept in the Matter data model. A Cluster defines a set of related capabilities -- including what states it has (Attributes) and what operations it supports (Commands).

Analogy: a system within a room. A room might have a lighting system, an HVAC system, and a door lock system. Each system manages one category of things, with its own state and controls. A Cluster is exactly such a functional system.

Each Cluster has a standard ID (hexadecimal), assigned by the CSA:

Attribute

An Attribute is a piece of state information within a Cluster, and each Attribute also has an ID. Think of it as a reading on a device dashboard -- you can check it, and some can be adjusted.

Some Attributes are read-only (e.g. the current lock state), while others are writable (e.g. setting the auto-relock time).

Command

A Command is an operation that a Cluster supports -- like a button on a remote control. Press it, and the device performs the corresponding action.

Full Example: A Door Lock's Matter Data Structure

Putting all the concepts together, a door lock's Matter data structure looks like this:

Node (Door Lock Device -- the entire building)
├── Endpoint 0 (Management Endpoint -- management office)
│   ├── BasicInformation (0x0028)    → Vendor name, product name, serial number
│   ├── Descriptor (0x001D)          → Lists which Clusters this endpoint has
│   └── NetworkCommissioning (0x0031)→ WiFi/Thread network configuration
│
└── Endpoint 1 (Application Endpoint -- tenant room)
    ├── DoorLock (0x0101)            → Door lock system
    │   ├── Attribute 0x0: LockState     = 0x01 (Locked)
    │   ├── Attribute 0x23: AutoRelockTime = 30 (auto-relock in 30s)
    │   ├── Command 0x0: LockDoor         → Lock
    │   └── Command 0x1: UnlockDoor       → Unlock
    │
    ├── PowerSource (0x002F)         → Power system
    │   ├── Attribute 0x0: Status        = 1 (Active)
    │   └── Attribute 0xC: BatPercent    = 180 (actual 90%)
    │
    └── Identify (0x0003)            → Identification system
        └── Command 0x0: Identify        → Flash/beep

Device Type

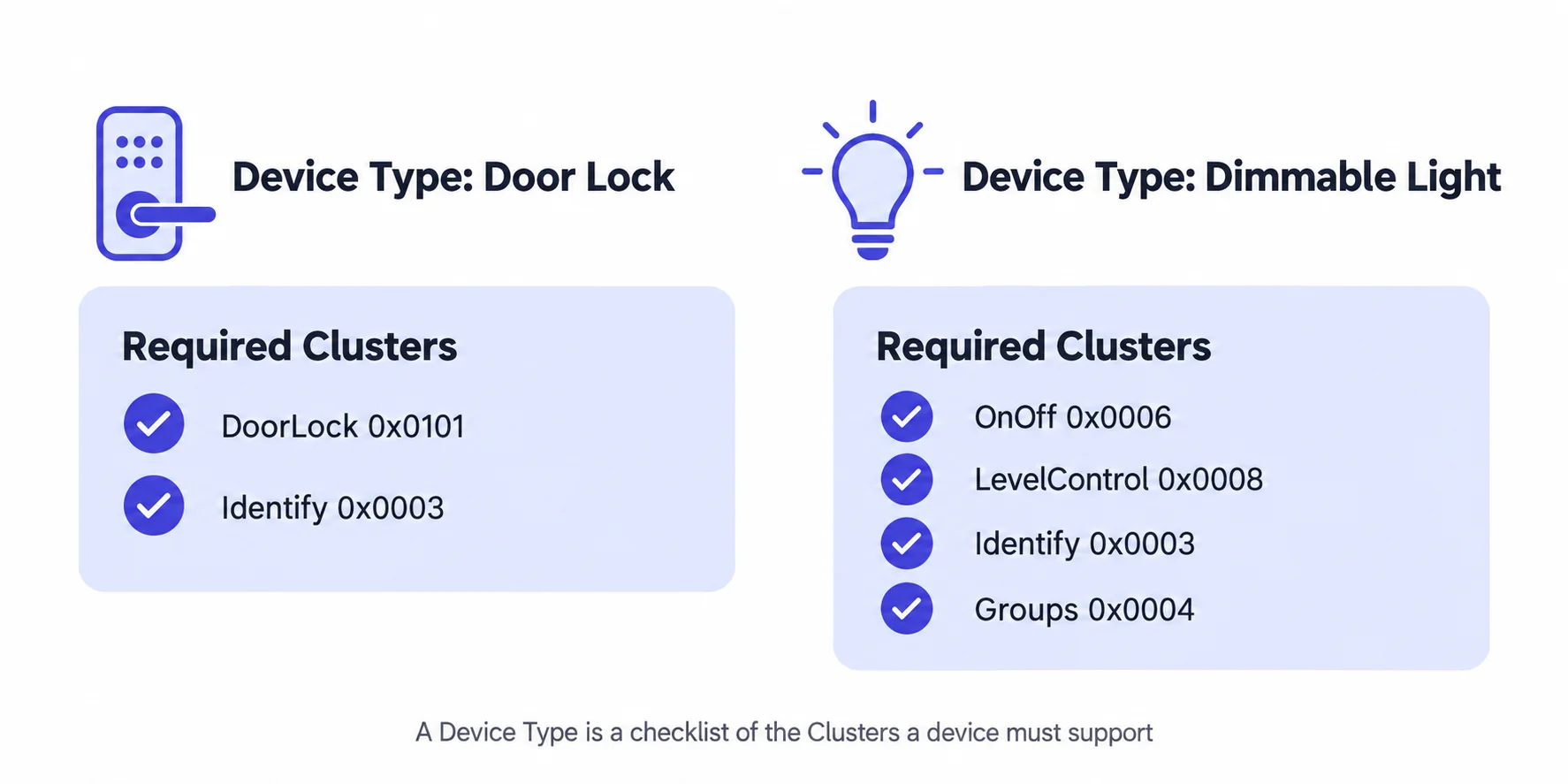

A Device Type specifies which Clusters a device must support. It is like a certification checklist.

For example, the "DoorLock" Device Type requires a device to implement at least the DoorLock Cluster, Identify Cluster, etc. "Dimmable Light" requires the OnOff Cluster and the LevelControl Cluster.

Analogy: just as a hotel must have a gym, pool, and 24-hour front desk to earn a five-star rating, a device must have the capabilities specified by Matter to claim a certain device type.

Every device type has a number: Door Lock is 0x000A, Dimmable Light is 0x0101, and the Root Node that every device has is 0x0016. A device declares its types in the Descriptor.DeviceTypeList of each endpoint, and one endpoint can declare several (e.g. "Door Lock + Power Source"). See the full list in Matter ID Lookup · Device Type IDs.

Fabric

A Fabric is a trust domain in a Matter network. Devices within the same Fabric trust each other and can communicate and control one another directly.

Analogy: a corporate intranet. When your laptop connects to the company VPN, it is inside a trust domain and can access internal services. People not on the VPN cannot.

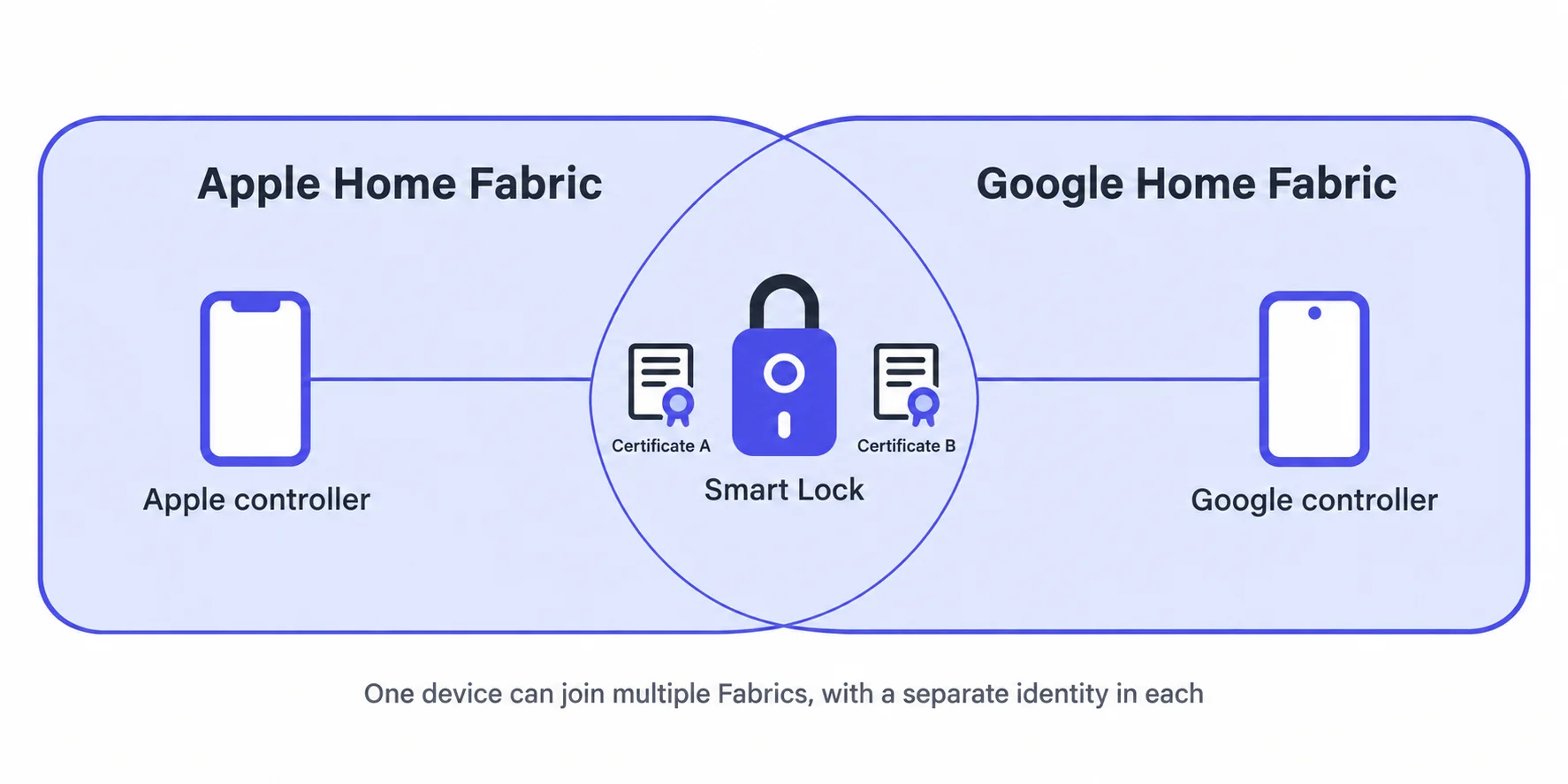

A device can join multiple Fabrics simultaneously. For example, a door lock can be controlled by both Apple Home and Google Home at the same time -- it has a separate identity in each Fabric.

Commissioner and Commissioning

The process of adding a device to a Fabric is called Commissioning. The device that performs this operation is called the Commissioner.

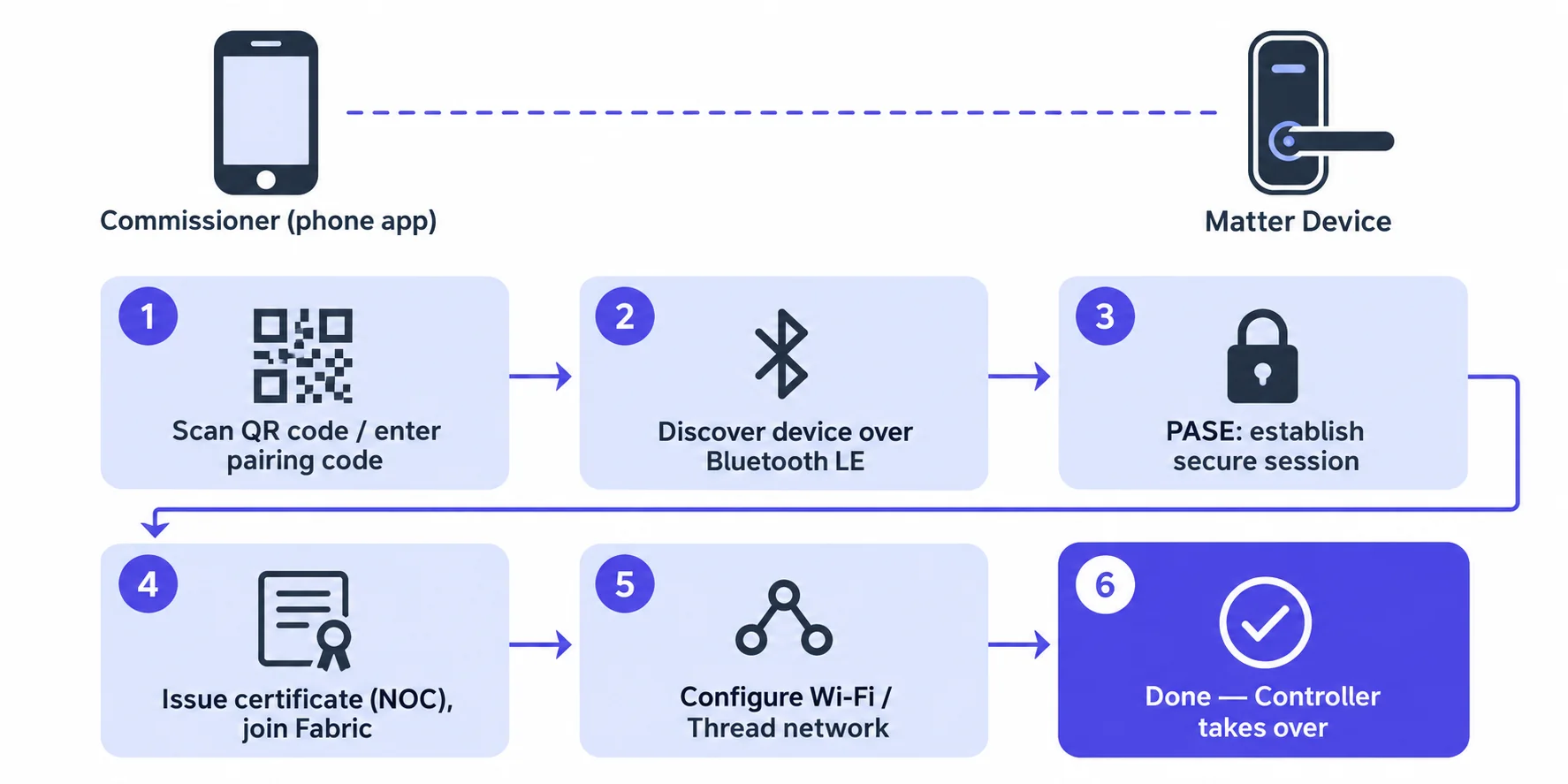

The commissioning flow in brief:

1. The Commissioner (typically a phone app) scans the device's QR code or enters a setup code
2. The device is discovered over Bluetooth LE (it is not on the network yet, so Bluetooth is the only way to reach it)
3. A secure session is established via PASE (Passcode-Authenticated Session Establishment)
4. The Commissioner assigns a certificate (NOC) to the device, officially adding it to the Fabric
5. The Commissioner sends the Wi-Fi or Thread network credentials to the device so it can join the home network
6. After commissioning, the phone app or smart speaker acts as a Controller and can read Attributes and send Commands to control the device

After commissioning: what is this device and what can it do?

Commissioning only brings the device onto the network. Next the app needs to answer two questions: what device is this, and which features does it support? Matter has no separate "device manual" file. The answers live in a few standard fields that every device must provide and any Controller can read.

The standard reading order for a Controller:

1. Read PartsList on endpoint 0 to get every endpoint number
2. Read DeviceTypeList on each endpoint to learn what it is
3. Read ServerList on each endpoint to learn which clusters it has
4. Read FeatureMap / AcceptedCommandList / AttributeList on each cluster to learn exactly what it can do
5. Read BasicInformation on endpoint 0 for vendor, model and firmware version

Can I get the device's raw capability set?

Yes. Matter supports a wildcard read: set endpoint, cluster and attribute all to "any" and every attribute on the device comes back in one go, including all the fields above. This is the most complete, unprocessed description of a device. Whatever device info an app shows is interpreted from it.

• chip-tool (the official CLI): chip-tool any read-by-id 0xFFFFFFFF 0xFFFFFFFF <node-id> 0xFFFF. The three wildcards mean all clusters, all attributes, all endpoints
• A single field: chip-tool descriptor read device-type-list <node-id> 1 reads the device types of endpoint 1
• Platform SDKs: Android, iOS and Web all have equivalents, see SDK Guides · Reading device types and capabilities
• Home Assistant: device page → Download diagnostics. Its attributes object is the wildcard read result, keyed as endpoint/cluster/attribute (decimal)

ID Numbering Conventions

Nearly everything in Matter is identified by a hexadecimal ID. Knowing the ID ranges helps you quickly determine what an ID represents.

Found an ID you don't recognise? Look it up in the Matter ID Lookup. Hex and decimal both work. Note that the same number means different things in different fields: 0x0101 is Door Lock as a cluster but Dimmable Light as a device type.

Common Cluster ID Quick Reference
